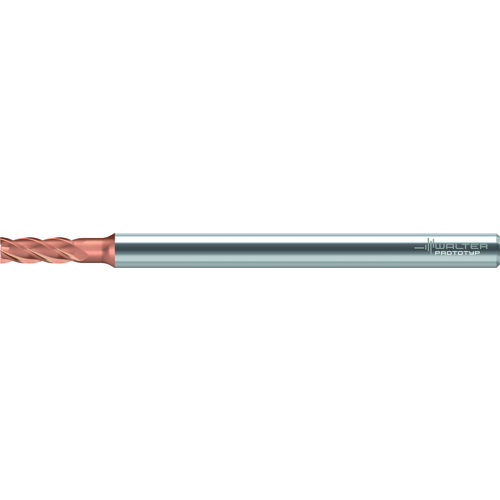

MC232.3.18A4D-WJ30ED EM
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; 1/2″ LBS ; Carbide ; AlTiCrN ; Series MC232
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | WJ30ED |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | MC232 |
| End Shape | Square |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.046
