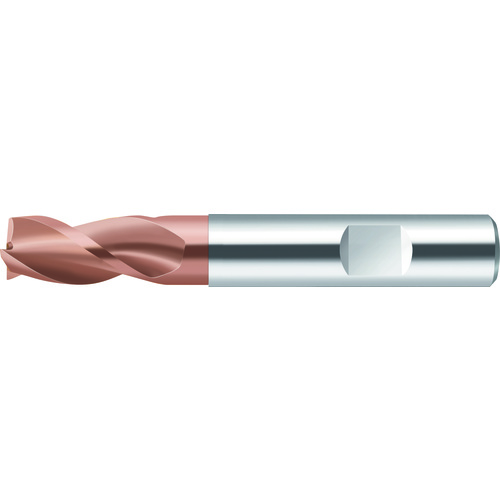

MC232-10.0W3BC-WJ30ED EM
SQ End Mill; 10 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0.1 mm RE ; 3 FL ; 30 mm LBS ; Carbide ; AlTiCrN ; Series MC232
| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 30 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 19 mm | Grade | WJ30ED |
| Overall Length (OAL) | 72 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiCrN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC232 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.1 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.042
