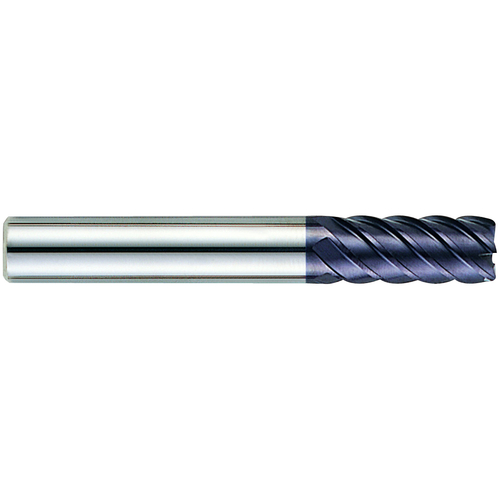

Corner Radius End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 6″ OAL ; 6 FL ; Carbide ; Y-Coating ; Series GM668
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 6″ OAL ; 0.03″ RE ; 0.03″ RE ; 6 FL ; 3-1/4″ LBS ; Carbide ; AlCrN ; Series GM668
| Cutting Diameter (DC) | 1/2″ | Usable Length (LU) | 3-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 6″ | Length Group | Long |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Series/List # | GM668 |
| Flute Helix Angle (FHA) | 45 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Shank Type | Round | Trade Name | X Power Pro |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.1
