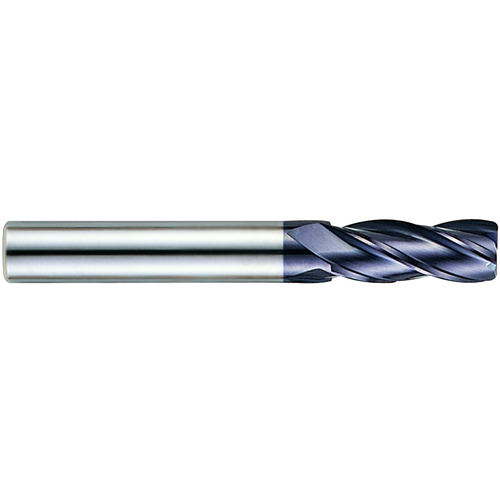

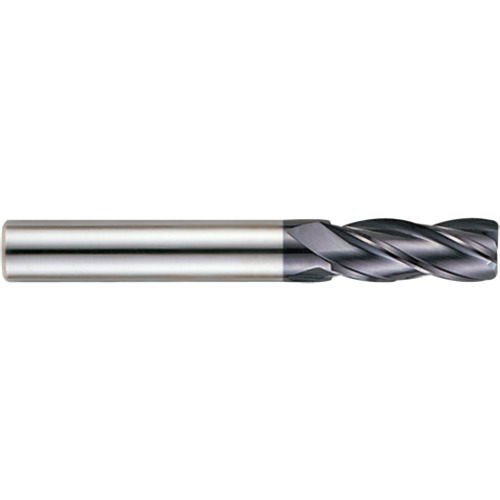

Corner Radius End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series GM639
SQ End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 3″ OAL ; 0.02″ RE ; 0.02″ RE ; 4 FL ; Carbide ; AlCrN ; Series GM639
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 3″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.375″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | GM639 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Shank Type | Round | Trade Name | X Power Pro |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.1
