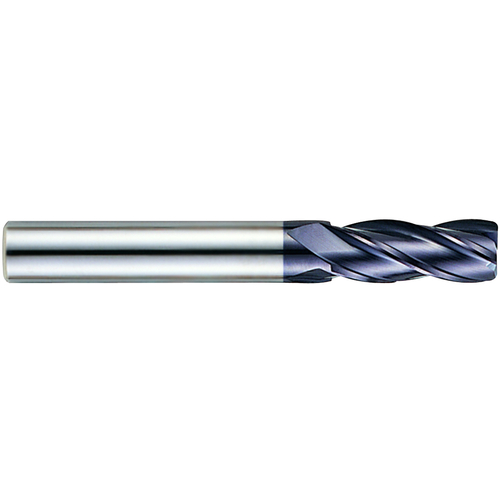

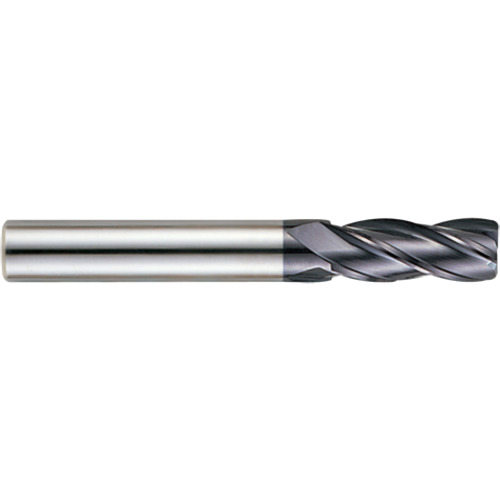

Corner Radius End Mill; 1/2″ Dia. × 2″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; Y-Coating ; Series GM212
SQ End Mill; 1/2″ Dia. × 2″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.02″ RE ; 0.02″ RE ; 4 FL ; Carbide ; AlCrN ; Series GM212
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 2″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | GM212 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Shank Type | Round | Trade Name | X Power Pro |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0.1
