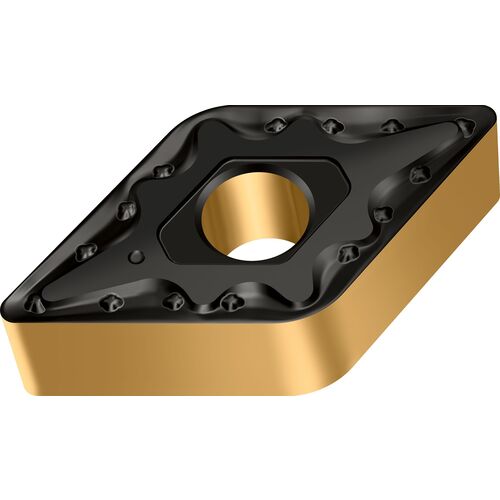

DNMG442-NM4 WPP20G
Turning Insert; 55 Rhombic ; 15.504 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; WPP20G ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 15.504 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | NM4 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | Al2O3 | TiN | TiCN | | Shape | 55° Rhombic |
| Grade | WPP20G | Cutting Depth Maximum (CDX) | 3 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 15.504 mm |
| Tool Type | Turning Insert | Model No | DNMG150608-NM4 WPP20G |
| Min D.O.C. | 0.8 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
