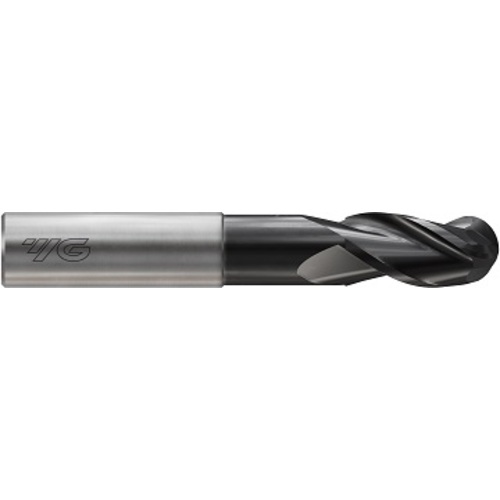

Ball Nose End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Super DLC ; Series JAI59
BN End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; DLC ; Series JAI59
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Neck Diameter (DN) | 0.47″ |
| Overall Length (OAL) | 4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | DLC | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | JAI59 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-1/4″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.448818898
Package Width
0.708661417
Package Height
0.708661417
Package Weight
0.348
