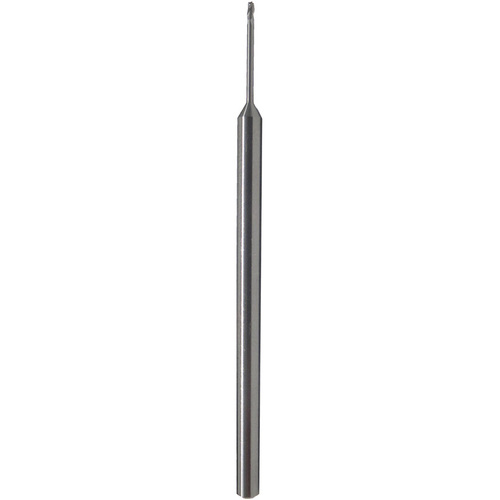

0.075″ Dia. × 1/8″ Shank × 0.225″ DOC × 1-1/2″ OAL, Carbide, DLC, 4 Flute, 30° Helix, Plain, External, Corner Radius, Solid End Mill Series/List #5934E
SQ End Mill; 0.075″ Dia. × 0.225″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.005″ RE ; 4 FL ; Carbide ; DLC ; Series 5918E
| Cutting Diameter (DC) | 0.075″ | Corner Radius (RE) | 0.005″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Head Length (LH) | 0.225″ |
| Depth of Cut Maximum (APMX) | 0.225″ | Tool Type | Miniature End Mill |
| Overall Length (OAL) | 1-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | DLC | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.075″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5918E |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| Usable Length (LU) | 0.225″ | Trade Name | NANO CUT |
| Application | Finishing |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.017
