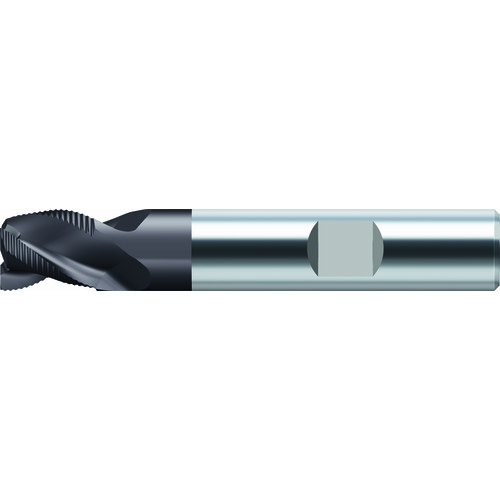

MC320-06.0W3A-WK40TF EM
SQ End Mill; 6 mm Dia. × 7 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 0.2 mm RE ; 3 FL ; 7 mm LBS ; Carbide ; TiAlN ; Series MC320
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 6 mm | Usable Length (LU) | 7 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7 mm | Grade | WK40TF |
| Overall Length (OAL) | 54 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 40 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MC320 |
| End Shape | Square | Corner Radius (RE) / Chamfer Width (CHW) | 0.2 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
