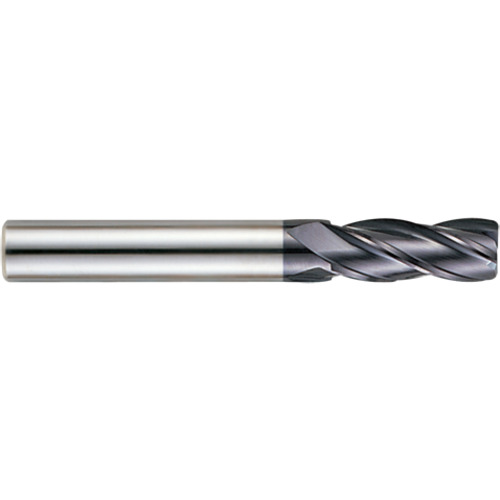

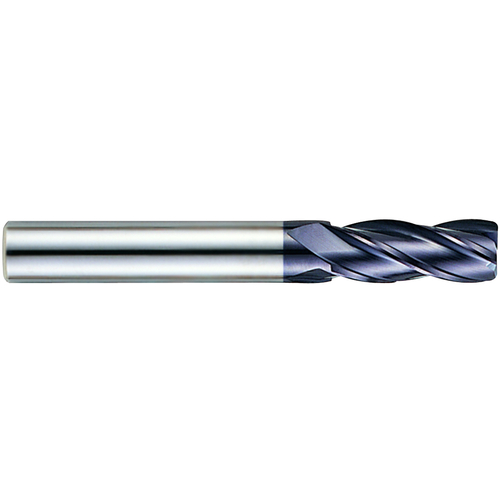

1/8″ CBD EM R.01 × 1/4X
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/4″ Shank Dia. × 2-1/4″ OAL ; 0.01″ RE ; 0.01″ RE ; 4 FL ; Carbide ; AlCrN ; Series GM649
| Cutting Diameter (DC) | 1/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 2-1/4″ | Length Group | Stub |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.125″ |
| Coating | AlCrN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | GM649 |
| Flute Helix Angle (FHA) | 30 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Shank Type | Round | Trade Name | X Power Pro |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.052
