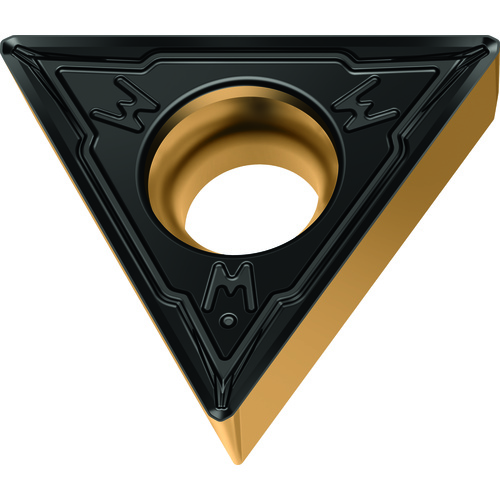

TCMT16T308-FW4 WPP20G
Turning Insert; Triangle ; 16.498 mm Length × 9.525 mm IC × 0.8 mm Corner Radius ; WPP20G ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.3 mm |
| Insert Style | TCMT | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.8 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 16T308 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 16.498 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | FW4 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Depth Maximum (CDX) | 2.5 mm |
| Grade | WPP20G | Cutting Edge Effective Length (LE) | 16.498 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Model No | TCMT16T308-FW4 WPP20G |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
