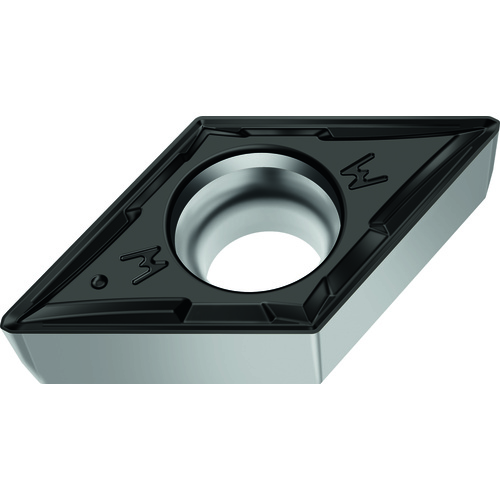

DCMT11T304-MW4 WKK20S
Turning Insert; 55 Rhombic ; 11.628 mm Length × 9.525 mm IC × 0.4 mm Corner Radius ; WKK20S ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Min D.O.C. | 0.5 mm |
| Insert Style | DCMT | Depth of Cut Maximum (APMX) | 4 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 11T304 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 11.628 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.969 mm | Chip Breaker Type | MW4 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | | Al2O3 | TiN | TiCN | | Cutting Depth Maximum (CDX) | 4 mm |
| Grade | WKK20S | Cutting Edge Effective Length (LE) | 11.628 mm |
| Fixing Hole Diameter (D1) | 4.4 mm | Model No | DCMT11T304-MW4 WKK20S |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
