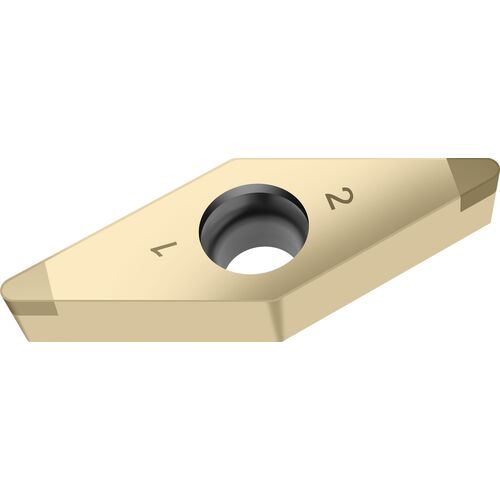

VCGW110302TS-2 WBH20C
Turning Insert; 35 Rhombic ; 11.071 mm Length × 6.35 mm IC × 0.2 mm Corner Radius ; WBH20C ; CBN ; CBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.1 mm |
| Insert Style | VCGW | Depth of Cut Maximum (APMX) | 0.3 mm |
| Corner Radius (RE) | 0.2 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 110302 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 11.071 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.175 mm | Chip Breaker Type | TS |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | CBN | Shape | 35° Rhombic |
| Coating | CBN | Cutting Depth Maximum (CDX) | 0.3 mm |
| Grade | WBH20C | Cutting Edge Effective Length (LE) | 11.071 mm |
| Fixing Hole Diameter (D1) | 2.8 mm | Model No | VCGW110302TS-2 WBH20C |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.004
