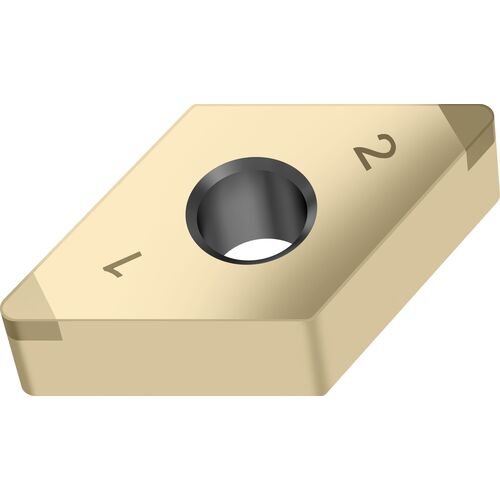

DNGA150604TM-2 WBH20C
Turning Insert; 55 Rhombic ; 15.504 mm Length × 12.7 mm IC × 0.4 mm Corner Radius ; WBH20C ; CBN ; CBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.1 mm |
| Insert Style | DNGA | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 150604 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 15.504 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | TM |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | CBN | Shape | 55° Rhombic |
| Coating | CBN | Cutting Depth Maximum (CDX) | 0.5 mm |
| Grade | WBH20C | Cutting Edge Effective Length (LE) | 15.504 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | Model No | DNGA150604TM-2 WBH20C |
| Tool Type | Turning Insert |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.049
