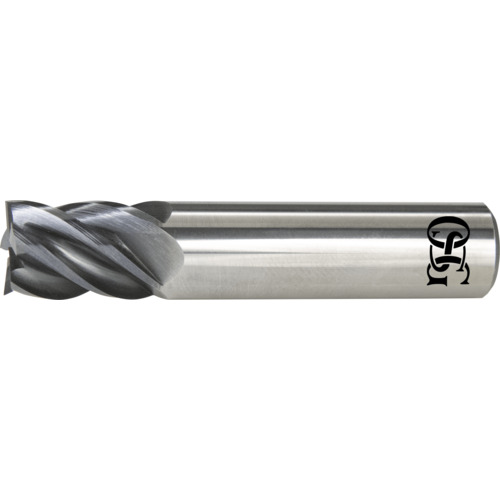

VGM5-01563CR0.01-S - 5/32″ Dia. × 5/32″ Shank × 15/64″ DOC × 2″ OAL, Carbide, EXO, 5 Flute, 0.01″ Corner Radius, End Mill
SQ End Mill; 5/32″ Dia. × 15/64″ LOC × 5/32″ Shank Dia. × 2″ OAL ; 0.01″ RE ; 5 FL ; Carbide ; TiAlN ; Series VGM5
| Cutting Diameter (DC) | 5/32″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/32″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 15/64″ | Tool Type | End Mill |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.1563″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM5 |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
