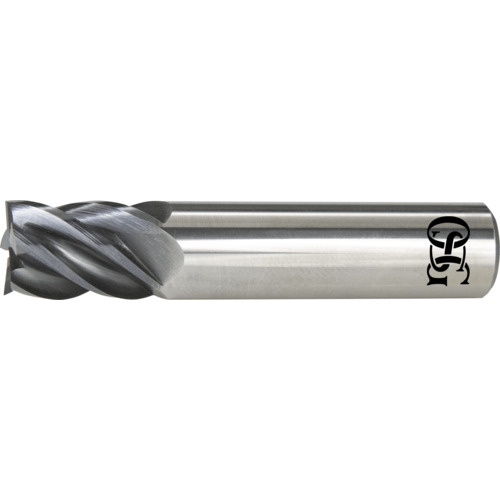

VGM5-01875CR0.015-R
SQ End Mill; 3/16″ Dia. × 9/16″ LOC × 3/16″ Shank Dia. × 2-1/4″ OAL ; 0.015″ RE ; 5 FL ; Carbide ; TiAlN ; Series VGM5
| Cutting Diameter (DC) | 3/16″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | End Mill |
| Overall Length (OAL) | 2-1/4″ | Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | VGM5 |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
| Shank Type | Round |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.054
