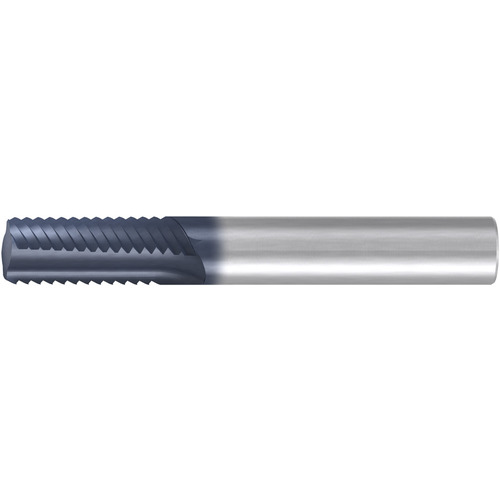

1931A.008 END MILL
SQ End Mill; 8 mm Dia. × 25 mm LOC × 8 mm Shank Dia. × 75 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series Fiber-Cut
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 25 mm | Applicable Material | | Other Non-Metallic Materials | |
| Overall Length (OAL) | 75 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Series/List # | 1931A |
| Coating | TiAlN | Trade Name | Fiber-Cut |
| Flute Count (NOF) | 2 |
Product Features
| Remarks | • Fiber-Cut carbide end mill for periphery milling and trimming of aramid fiber reinforced plastics • Alternating tooth helix direction for burr-free, delamination-free machining • Bright, uncoated surface finish | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
