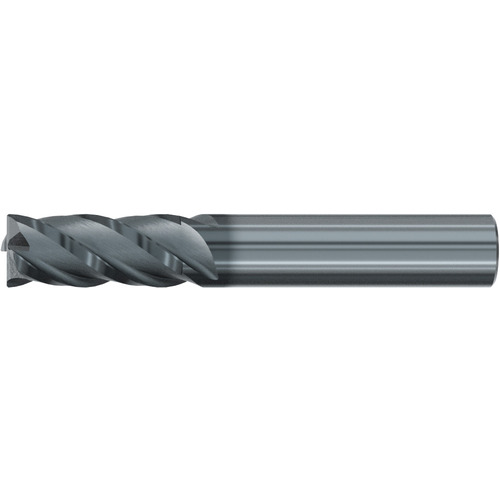

2994L.A250 END MILL
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlCr ; Series 2994L
| Cutting Diameter (DC) | 1/4″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Universal Materials | |
| Depth of Cut Maximum (APMX) | 3/4″ | Application | | Finishing | |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.25″ |
| Coating | AlCr | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 2994L |
| Flute Helix Angle (FHA) | | 35 Degrees | 38 Degrees | | Trade Name | Top-Cut VAR |
| Shank Type | Round |
Product Features
| Remarks | • TOP-Cut VAR carbide end mill 4 flute design for roughing and finishing in almost all materials • Special tool geometry enable low-vibration machining and universal use in almost all materials and milling processes • Wear resistant sub-micro grain carbide substrate • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | USA |
Shipping Info
Package Weight
0.999
