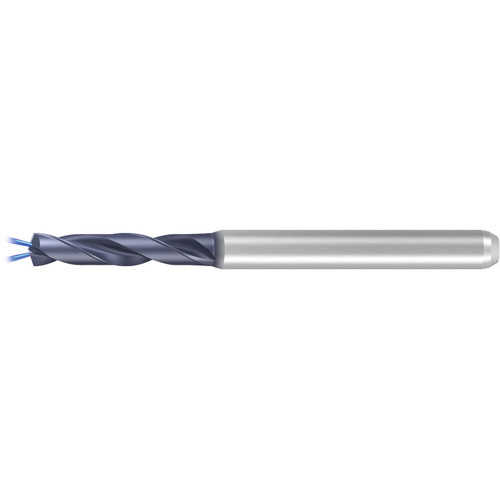

Solid Carbide Drill; 2.2 mm Dia. × 4 mm Shank Dia. × 63 mm OAL ; 140 Degrees ; 6xD ; ALCR
SC Drill; 2.2 mm Dia. × 4 mm Shank Dia. × 63 mm OAL ; 140 Degrees ; 6xD ; AlCr
| Drill Bit Size / Cutting Diameter (DC) | 2.2 mm | Shank Standard | DIN 6535 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.2 mm | Cutting Edge Material | Carbide |
| Length Group | 6xD | Tool Type | Dental |
| Coating | AlCr | Measurement Type | Metric |
| Applicable Material | | Super-Alloys / Titanium | | Usable Length (LU) | 13.2 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Overall Length (OAL) | 63 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Feature | • ALCR coating for high wear protection and very long service life. • Self-centering for maximum precision. • With shaft diameter 4 mm, suitable for many machine systems. |
| Point Angle (SIG) | 140 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Length (LS) | 40 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
