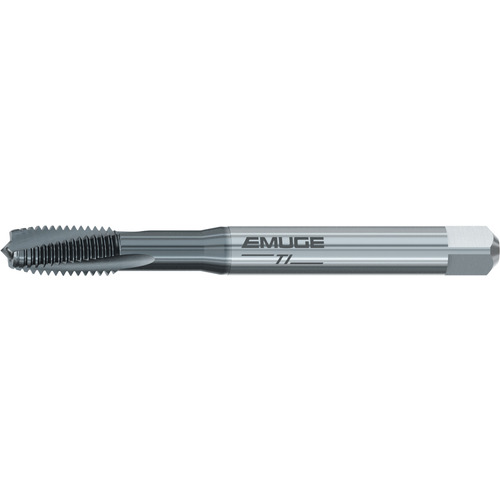

Spiral Flute Tap; #1 -64 × 1.772″ OAL ; HSSE ; UNC ; 3BX
Spiral Flute Tap; #1 - 64 ; 1.772″ OAL ; HSSE ; 3BX
| Thread Diameter Size (TDZ) | #1 | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 64 | Cutting Edge Material | HSSE |
| Thread Standard | UNC | Thread Tolerance Class (TCTR) | 3BX |
| Overall Length (OAL) | 1.772″ | Chamfer | 4P-5P |
| Usable Length (LU) | 0.551″ | Series/List # | BU309611 |
| Connection Diameter Machine Side (DCONMS) | 0.1098″ | Application | Blind Hole |
Product Features
| Remarks | • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. • Longer tool life and more consistent thread quality. • Best suited for through hole applications. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
