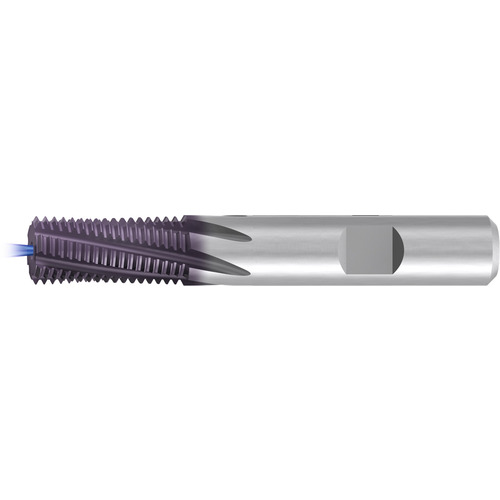

Thread Mill; M16 × 1.5 mm ; 16 mm Shank Dia. × 95 mm OAL ; Carbide ; TiCN
| Thread Size | M16 | Shank Type | Weldon |
| Thread Pitch (TP) | 1.5 mm | Coating | TiCN |
| Thread Standard | Metric | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Diameter (DC) | 14.1 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 95 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 5 | Series/List # | GFB35106 |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
Product Features
| Remarks | • Thread mills with standard thread profile (for different thread sizes but for one pitch only) • Vario-Z thread mill decrease cycle time with increased flute count. • In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
