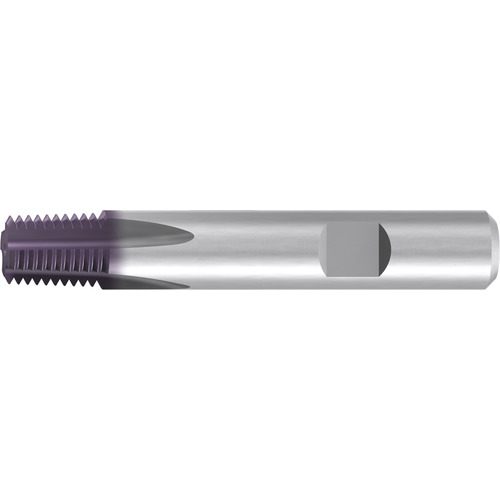

Thread Mill; 3/4″ - 14 × 5/8″ Shank Dia. × 3-1/2″ OAL ; Carbide ; TiCN
Thread Mill; 3/4″ - 14 ; 5/8″ Shank Dia. × 3-1/2″ OAL ; Carbide ; TiCN
| Thread Size | 3/4″ | Shank Type | Weldon |
| Threads per Inch (TPI) | 14 | Coating | TiCN |
| Thread Standard | NPTF | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Diameter (DC) | 0.561″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 3-1/2″ | Series/List # | GFT53136 |
| Flute Count (NOF) | 4 | Tool Type | Solid Carbide Thread Mills |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • Solid carbide thread milling cutters for tapered threads • This tool is for a specific size and pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
