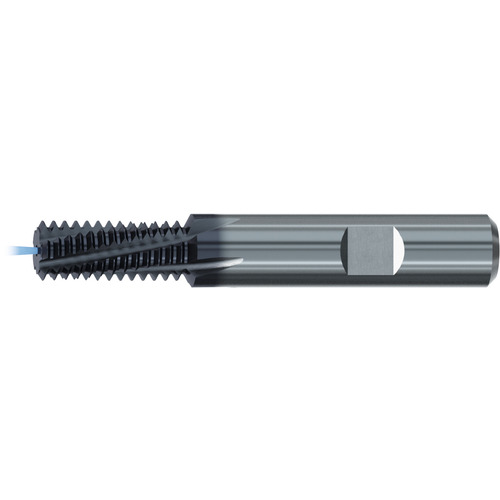

Thread Mill; 1/2″ - 13 × 1/2″ Shank Dia. × 3″ OAL ; Carbide ; TiAlN
Thread Mill; 1/2″ - 13 ; 1/2″ Shank Dia. × 3″ OAL ; Carbide ; TiAlN
| Thread Size | 1/2″ | Shank Type | Weldon |
| Threads per Inch (TPI) | 13 | Coating | TiAlN |
| Thread Standard | UNC | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Diameter (DC) | 0.371″ | Flute Helix Angle (FHA) | 15 Degrees |
| Overall Length (OAL) | 3″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Series/List # | GFR8B109 |
| Coolant Supply Property (CSP) | Coolant Thru | Tool Type | Solid Carbide Thread Mills |
Product Features
| Remarks | • For production of internal threads with a higher flute count for higher feed rates • Axial coolant fed channel for enhanced chip removal rates • This tool is for a specific size and pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
