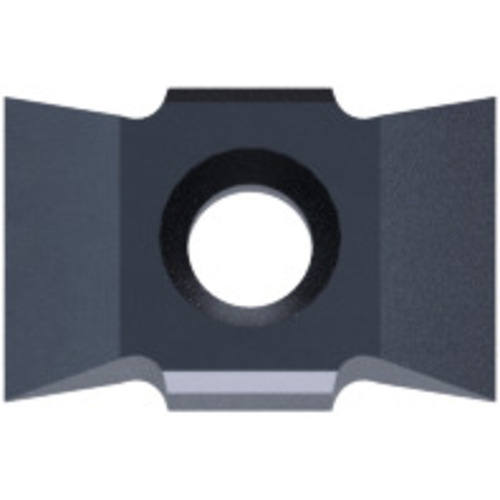

GF643207.9844 THDMILL INS
| Thread Standard | ACME | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Threads per Inch (TPI) | 4 | Size | #12 |
| Insert Length (INSL) | 8.5 mm | Cutting Edge Material | Carbide |
| Insert Width (W1) | 13.5 mm | Coating | TiAlN |
| Application | | Internal Thread Milling | | Series/List # | GF643207 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Tool Type | Threading Regular Insert |
Product Features
| Remarks | • Indexable insert for Emuge Gigant-IC threading system. • 4-tooth carbide indexable inserts for internal threads • Economical system for creating large diameter threads. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
