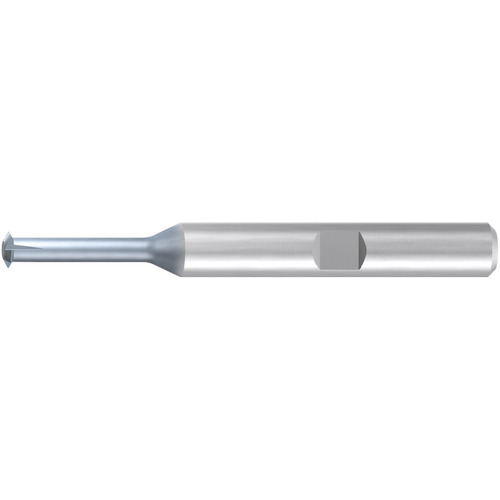

Thread Mill; 1/4″ - 20 × 6 mm Shank Dia. × 2.323″ OAL ; Carbide ; TiCN
Thread Mill; 1/4″ - 20 ; 6 mm Shank Dia. × 2.323″ OAL ; Carbide ; TiCN
| Thread Size | 1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Threads per Inch (TPI) | 20 | Shank Type | Weldon |
| Thread Standard | UNC | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Cutting Diameter (DC) | 0.195″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2.323″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 6 | Tool Type | Solid Carbide Thread Mills |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.999
