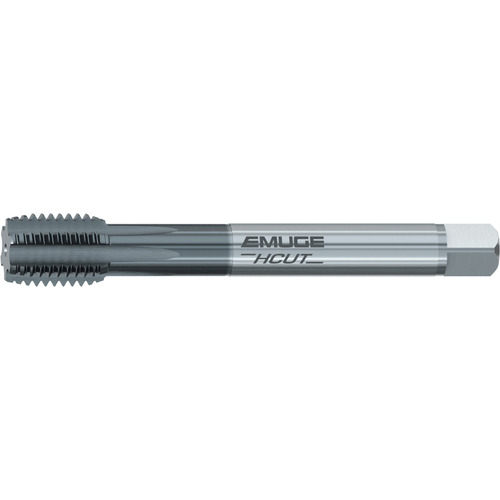

Pipe Tap; 3/8″ -19 × 100 mm OAL ; HSS-E-PM ; TiCN ; G
| Tool Type | Pipe Tap | Applicable Material | | Hard Materials | |
| Thread Diameter Size (TDZ) | 3/8″ | Chamfer | C |
| Threads per Inch (TPI) | 19 | Coating | TiCN |
| Thread Standard | G | Cutting Edge Material | HSSE-PM |
| Usable Length (LU) | 15 mm | Measurement Type | Inch |
| Flute Count (NOF) | 6 | Special Feature | HSSE-PM tap for hardened steel applications |
| Overall Length (OAL) | 100 mm | Length Group | DIN |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | C010J901 |
| Coolant Supply Property (CSP) | External | Thread Size | 3/8″-19 |
Product Features
| Remarks | • Rekord A-HCUT is a straight flute design best suited for short chipping, hardened steel in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
