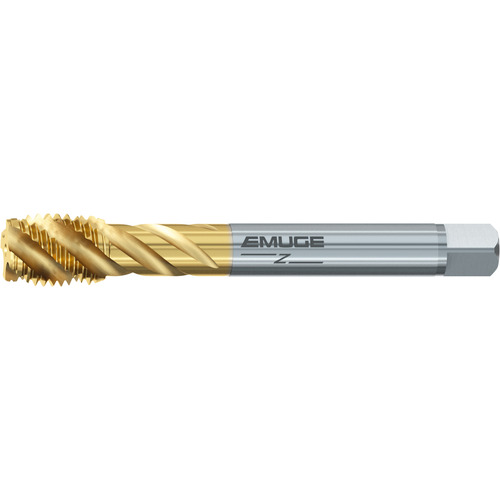

3/4-14NPSF 2ENORM-Z/E TIN
| Tool Type | Pipe Tap | Chamfer | E |
| Thread Diameter Size (TDZ) | 3/4″ | Coating | TiN |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | HSSE |
| Thread Standard | NPSF | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Special Feature | The Enorm Z/E design is typically for blind hole threads in long chipping materials. |
| Overall Length (OAL) | 140 mm | Length Group | DIN |
| Connection Diameter Machine Side (DCONMS) | 26.166 mm | Series/List # | C0513700 |
| Coolant Supply Property (CSP) | External | Thread Size | 3/4″-14 |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.712
