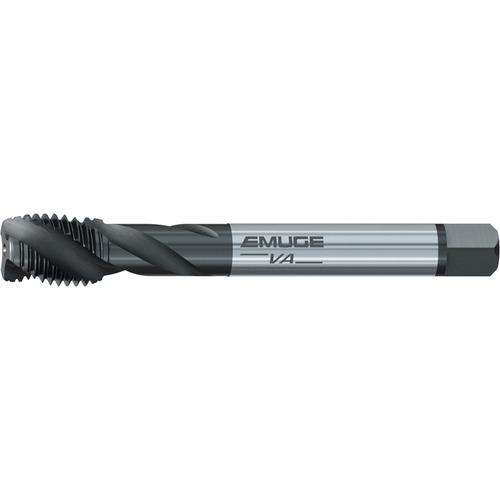

Spiral Flute Tap; 1″ -14 × 5.512″ OAL ; HSSE ; UNS ; 3B
Spiral Flute Tap; 1″ - 14 ; 5.512″ OAL ; HSSE ; 3B
| Thread Diameter Size (TDZ) | 1″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | HSSE |
| Thread Standard | UNS | Thread Tolerance Class (TCTR) | 3B |
| Overall Length (OAL) | 5.512″ | Chamfer | 2P-3P |
| Usable Length (LU) | 0.787″ | Series/List # | CU503210 |
| Connection Diameter Machine Side (DCONMS) | 0.8″ | Application | Blind Hole |
Product Features
| Remarks | • The Enorm VA design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. • The fast spiral flute (35°) provides good chip removal from blind holes. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
