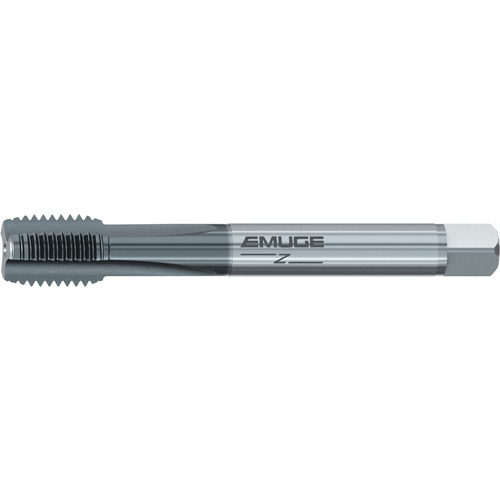

Straight Flute Tap; 7/8″ -9 × 5.512″ OAL ; UNC ; 3B
Straight Flute Tap; 7/8″ - 9 ; 5.512″ OAL ; 2BX

| Thread Diameter Size (TDZ) | 7/8″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 9 | Thread Tolerance Class (TCTR) | 2BX |
| Thread Standard | UNC | Chamfer | 2P-3P |
| Overall Length (OAL) | 5.512″ | Series/List # | CU109401 |
| Usable Length (LU) | 1.063″ | Thread Size | 7/8″ - 9 |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications.
• Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
