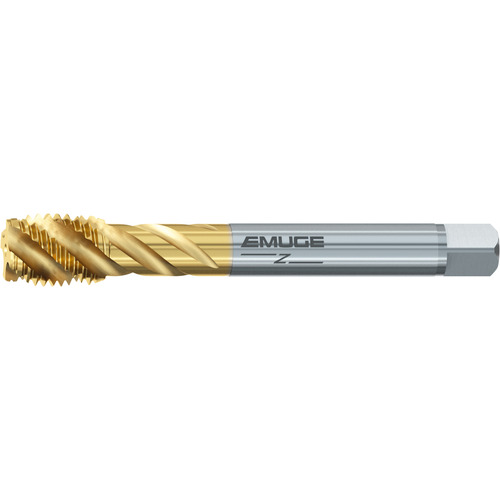

Spiral Flute Tap; 1/2″ -13 × 4.331″ OAL ; HSSE ; TiN ; UNC
Spiral Flute Tap; 1/2″ - 13 ; 4.331″ OAL ; HSSE ; TiN ; Series CU513700
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 13 | Cutting Edge Material | HSSE |
| Thread Standard | UNC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 4.331″ | Coating | TiN |
| Usable Length (LU) | 0.787″ | Series/List # | CU513700 |
| Connection Diameter Machine Side (DCONMS) | 0.275″ | Application | Blind Hole |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.999
