14MM 4F ST RGHR-HB-TIALN

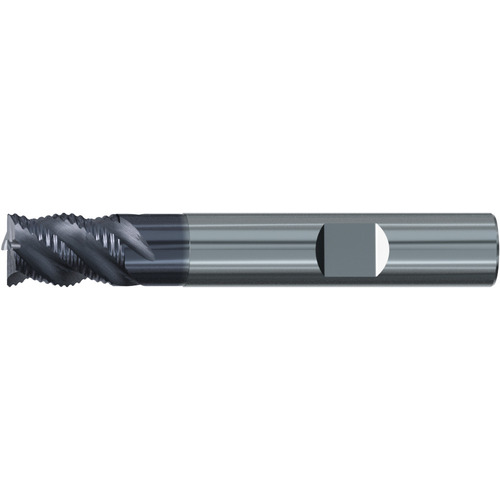

Square End Mill; 14 mm Dia. × 18 mm LOC × 14 mm Shank Dia. × 75 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 14 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 18 mm | End Shape | Square |
| Overall Length (OAL) | 75 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Application | | Roughing | |
| Coating | TiAlN | Trade Name | Multi-Cut |
Product Features
| Remarks | • Multi-Cut / Base, carbide end mill for universal roughing in almost all materials • Very low cutting forces and vibrations due to variable spacing and NR rougher cutting profile • Excellent for roughing under unstable conditions • Increased production rates with higher feed rates. | Country of Origin | Germany |
Shipping Info
Package Weight
0.327
