16MM 4F STUB RGHR-TIALN

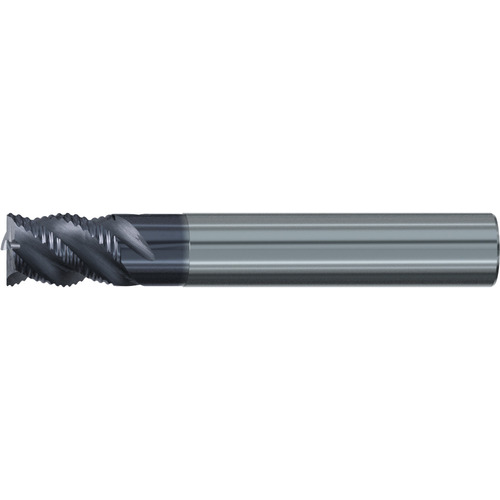

Square End Mill; 16 mm Dia. × 22 mm LOC × 16 mm Shank Dia. × 82 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 82 mm | Application | | Roughing | |
| Cutting Edge Material | Carbide | Series/List # | 2896A |
| Coating | TiAlN | Trade Name | Multi-Cut |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | • Multi-Cut / Base, carbide end mill for universal roughing in almost all materials • Very low cutting forces and vibrations due to variable spacing and NR rougher cutting profile • Excellent for roughing under unstable conditions • Increased production rates with higher feed rates. | Country of Origin | Germany |
Shipping Info
Package Weight
0.457
