5MM 4F 0.5C/R STUB EM-HB

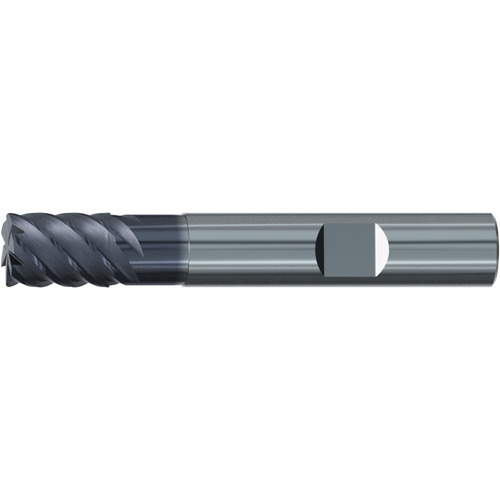

Corner Radius End Mill; 5 mm Dia. × 9 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 6 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 5 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 9 mm | Applicable Material | | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 54 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| Coating | TiAlN | Trade Name | Hard-Cut |
| Flute Count (NOF) | 6 |
Product Features
| Remarks | • Hard-Cut carbide end mill for finishing in high-strength materials up to 66 HRC • Suitable for low-vibration machining due to stable design with increased core diameter • High numbers of teeth enable high feed speeds • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.041
