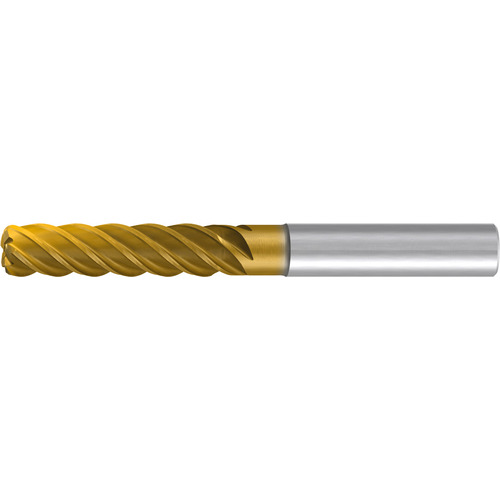

20MM 5F 4MM C/R EMTINOX
Corner Radius End Mill; 20 mm Dia. × 20 mm LOC × 20 mm Shank Dia. × 150 mm OAL ; 5 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 20 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 150 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Series/List # | 2655T |
| Coating | TiAlN | Corner Radius (RE) / Chamfer Width (CHW) | 4 mm |
| Flute Count (NOF) | 5 | Trade Name | TiNox-Cut |
Product Features
| Remarks | • TiNox-Cut carbide end mill for finishing operations in materials that are difficult to machine • Suitable for tough materials due to finishing profile • Variable spacing reduces vibrations • TIN/TIALN multi-layer coating for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
1.196
