12MM 5F 3MM C/R 3XD EM

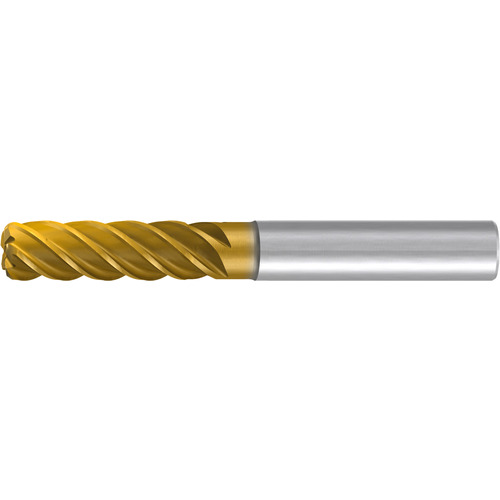

Square End Mill; 12 mm Dia. × 36 mm LOC × 12 mm Shank Dia. × 93 mm OAL ; 5 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 36 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 93 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Series/List # | 2654T |
| Coating | TiAlN | Trade Name | TiNox-Cut |
| Flute Count (NOF) | 5 |
Product Features
| Remarks | • TiNox-Cut carbide end mill for finishing operations in materials that are difficult to machine • Suitable for tough materials due to finishing profile • Variable spacing reduces vibrations • TIN/TIALN multi-layer coating for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.286
