8MM 4F 1MM C/R JCXL EM

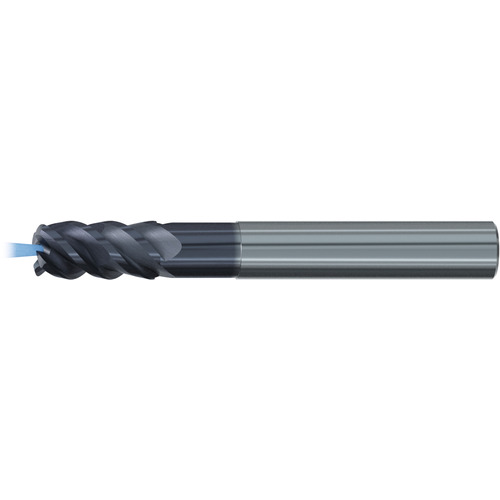

Corner Radius End Mill; 8 mm Dia. × 19 mm LOC × 8 mm Shank Dia. × 68 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 19 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Overall Length (OAL) | 68 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
| Coating | TiAlN | Trade Name | Jet-Cut |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | • Jet-Cut carbide end mill in extra long design for roughing under unstable conditions in almost all materials • Duplex geometry combines HPC and HFC geometry, enabling 2D and 3D machining with a single tool • Axial coolant hole for enhanced chip evacuation • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.092
