4MM 5F 0.4MM C/R JET CUT

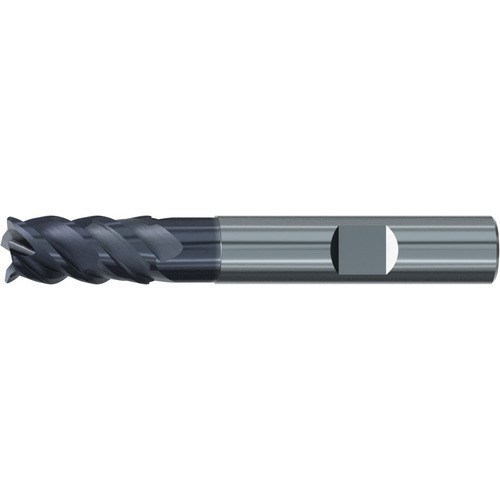

Corner Radius End Mill; 4 mm Dia. × 11 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 4 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 11 mm | Applicable Material | | Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 57 mm | Application | | Finishing | |
| Cutting Edge Material | Carbide | Series/List # | 1987A |
| Coating | TiAlN | Corner Radius (RE) / Chamfer Width (CHW) | 0.4 mm |
| Flute Count (NOF) | 4 | Trade Name | Jet-Cut |
Product Features
| Remarks | • Jet-Cut carbide end mill with lateral driving flat for roughing and finishing in high-strength materials • Special geometry enables high metal removal rate with best possible surface quality • Negative rake angle for use in high-strength materials • TiALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.039
