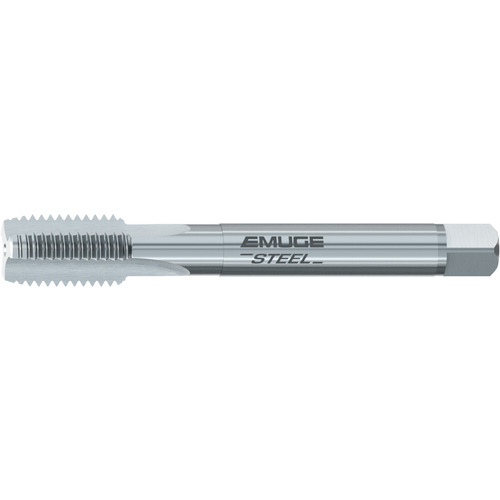

Pipe Tap; 1/2″ -14 × 125 mm OAL ; HSSE ; Bright ; NPSM ; Series 101001
| Tool Type | Pipe Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/2″ | Chamfer | C |
| Threads per Inch (TPI) | 14 | Coating | Uncoated |
| Thread Standard | NPSM | Cutting Edge Material | HSSE |
| Usable Length (LU) | 25 mm | Measurement Type | Inch |
| Flute Count (NOF) | 0 | Special Feature | Rekord A-Steel is a straight flute design for CNC applications |
| Overall Length (OAL) | 125 mm | Length Group | DIN |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | C0101001 |
| Coolant Supply Property (CSP) | External | Thread Size | 1/2″-14 |
Product Features
| Remarks | • Rekord A-Steel long length, straight flute American Standard straight pipe thread NPSM & NPSF • Tool for different thread sizes and pitches with correct thread profile | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
