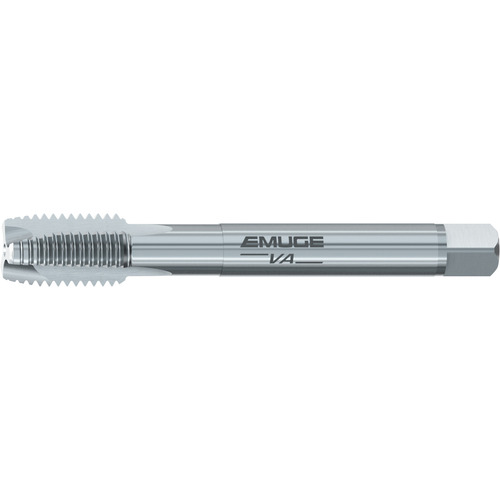

Pipe Tap; 1/8″ -28 × 90 mm OAL ; HSSE ; Nitride ; G

| Tool Type | Pipe Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/8″ | Chamfer | B |
| Threads per Inch (TPI) | 28 | Cutting Edge Material | HSSE |
| Thread Standard | G(BSP) | Measurement Type | Inch |
| Usable Length (LU) | 18 mm | Special Feature | Rekord B-VA design is for stainless steel and steel alloys. |
| Flute Count (NOF) | 3 | Length Group | DIN |
| Overall Length (OAL) | 90 mm | Series/List # | C0203000 |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Thread Size | 1/8″-28 |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.057
