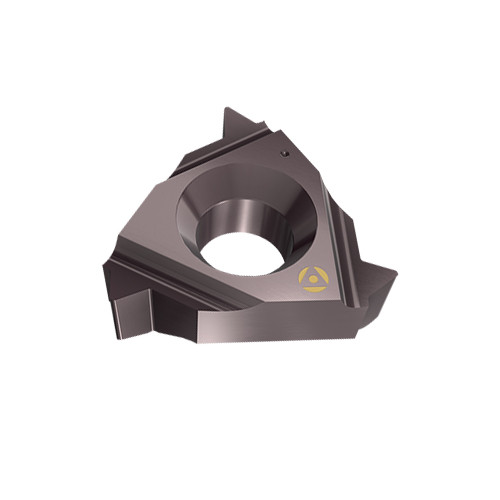

08UIRL 11UN GP28A
Laydown Threading Insert
| Inscribed Circle Diameter (IC) | 0.197″ | Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | |
| Insert Length (INSL) | 0.341″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 11 | Cutting Direction (HAND) | U-Type |
| Corner Radius (RE) | 0.0039″ | Measurement Type | Inch |
| Grade | GP28A | Body Material | Carbide |
| Coating | TiCN, TiN | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0354″ |
Product Features
| Family Description | Internal U-Style UN Profile Laydown Threading Inserts for Feed Screws | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
