0.5MM MICRO 10XD LONG EM

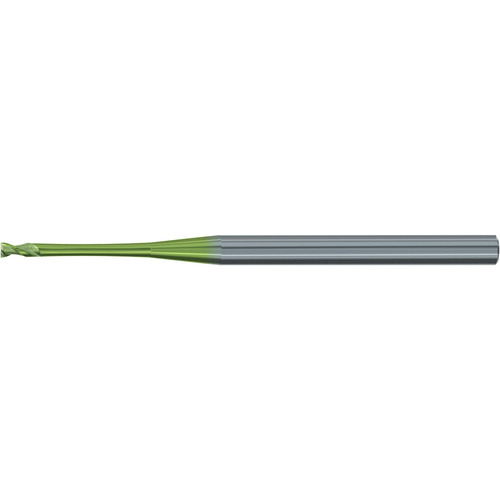

Square End Mill; 0.5 mm Dia. × 0.5 mm LOC × 3 mm Shank Dia. × 43 mm OAL ; 2 FL ; Carbide ; AlCr
| Cutting Diameter (DC) | 0.5 mm | Application | | Finishing | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 0.5 mm | Length Group | 10D |
| Overall Length (OAL) | 43 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Square |
| Coating | AlCr | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | 2765L |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Square | Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Trade Name | Micro |
Product Features
| Remarks | • Carbide micro end mill in short design for machining the smallest engravings and components in almost all materials • Special neck geometry for maximum process reliability even when used on deep contours • ALCR coating with particularly smooth surface for best possible wear protection and long tool life • Tight tolerance cutting geometry. | Country of Origin | Germany |
Shipping Info
Package Weight
0.006
