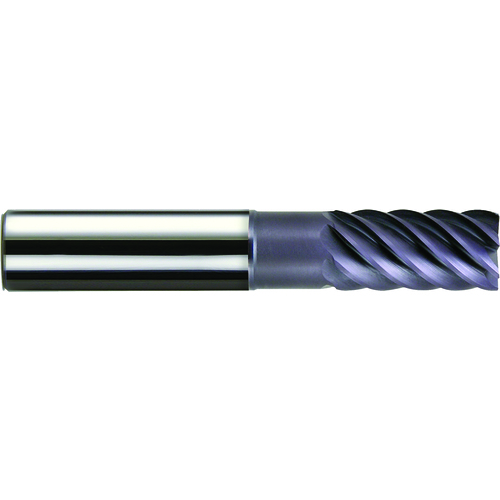

3/16″ × 3/16″ × 9/32″ × 1 1/2″ 7 Flute Single End Carbide HPE High Performance End Mill Center Cutting End Mill-nACo Series/List #5998
SQ End Mill; 3/16″ Dia. × 9/32″ LOC × 3/16″ Shank Dia. × 1-1/2″ OAL ; 7 FL ; Carbide ; AlTiSiN ; Series 5998
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 9/32″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 9/32″ | Tool Type | Single End |
| Overall Length (OAL) | 1-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiSiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 7 | Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5998 |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.029
