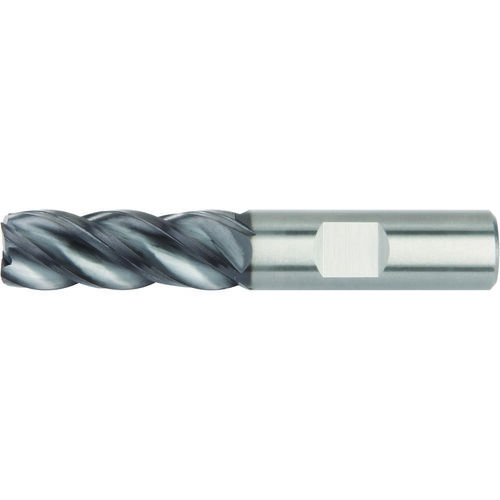

TF4V4503001 TIALN-LT EM
SQ End Mill; 1/8″ Dia. × 1/4″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 0.01″ RE ; 4 FL ; 1/4″ LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 1/8″ | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 1-1/2″ | Corner Chamfer Width (CHW) | 0.01″ |
| Cutting Edge Material | Carbide | Grade | TIALN-LT |
| Coating | AlTiN | Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 | Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees | Decimal Equivalent | 0.125″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.02
