3/4X3/4X1X3 1/4X5 1/4 .03 CARB EM

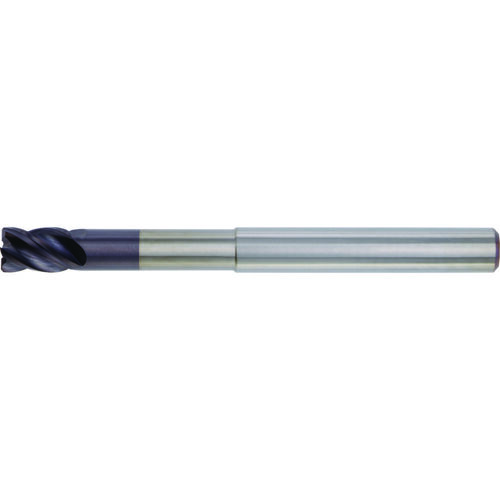

SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 3-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 5-1/4″ | Grade | TIALN-LW |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | AlTiN | Flute Type | Unequal Flute Spacing |
| Flute Count (NOF) | 4 | Style | 82-01 SEM Side Cutting |
| Flute Helix Angle (FHA) | CW|38 Degrees | Decimal Equivalent | 0.75″ |
| Shank Type | Weldon | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| End Shape | Corner Radius |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
1.049
