C2I G2N 0300 0008 GF1225
Parting Off Insert; 3 mm CW × 4.332 mm Thickness ; Neutral ; | TiAlN | TiAlSiN | TiSiN | ; 1225
Additional Tariff Surcharge of 8 %

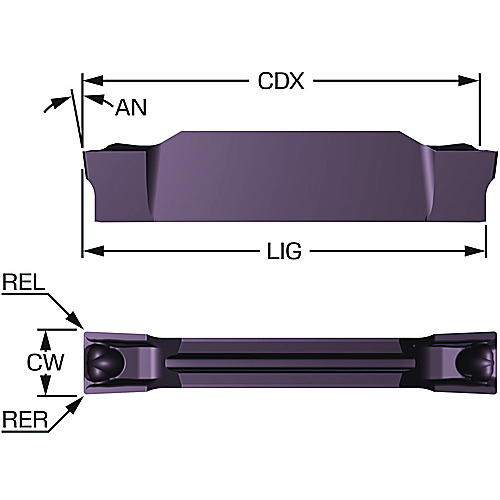

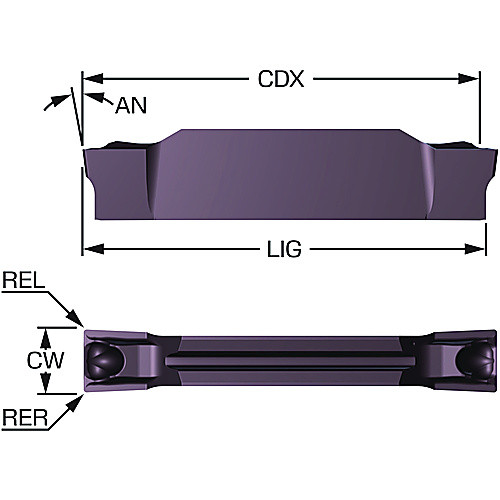

| Cutting Width (CW) | 3 mm | Insert Style | C2I |
| Insert Thickness (S) | 4.332 mm | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 18.56 mm | Measurement Type | Metric |
| Coating | | TiAlN | TiAlSiN | TiSiN | | Clearance Angle Major (AN) | 7 Degrees |
| Grade | 1225 | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | G |
| Chip Breaker Type | GF | Cutting Edge Count (CEDC) | 2 |
| Insert Size | G2 |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0
