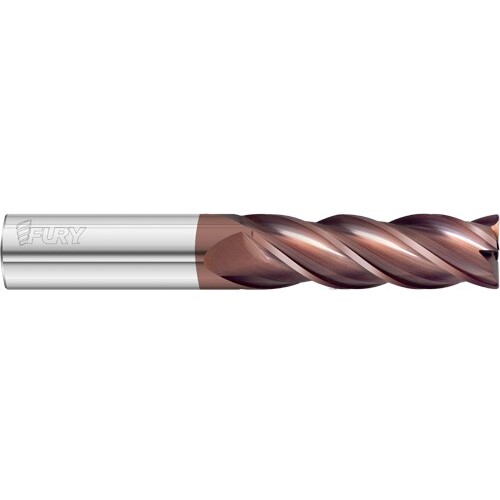

Corner Radius End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; FC20 ; Series 3500
SQ End Mill; 1/4″ Dia. × 1-1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Series 3500
| Cutting Diameter (DC) | 1/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 3″ | Tool Type | Single-End |
| Cutting Edge Material | Carbide | Length Group | Extra Long |
| Coating | FC20 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | 3500 |
| Shank Type | Round |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
.000
