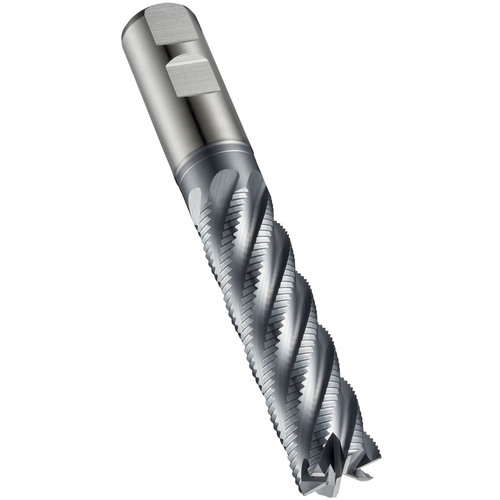

25.00 MM Dormer HSS-E-PM ALCRONA DIN 1835 B Shank Roughing End Mill HRA DIN 844 L E-code # C49225.0
SQ End Mill; 25 mm Dia. × 90 mm LOC × 25 mm Shank Dia. × 166 mm OAL ; 6 FL ; HSSCo-PM ; AlCrN ; Series S765
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 25 mm | Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | Shank Cutter Roughing |
| Depth of Cut Maximum (APMX) | 90 mm | Head Length (LH) | 90 mm |
| Overall Length (OAL) | 166 mm | Neck Length (LN) | 109.5 mm |
| Cutting Edge Material | HSSCo-PM | Length Group | Long |
| Coating | AlCrN | Shank Standard | DIN 1835 B |
| Flute Count (NOF) | 6 | Body Material | HSS-E-PM Material |
| Flute Helix Angle (FHA) | 35 Degrees | Decimal Equivalent | 0.9843″ |
| Shank Type | Weldon | Series/List # | S765 |
| Usable Length (LU) | 109.5 mm |
Product Features
| Family Description | E-code # C49225.0 | Country of Origin | Poland |
Shipping Info
Package Weight
19.341
