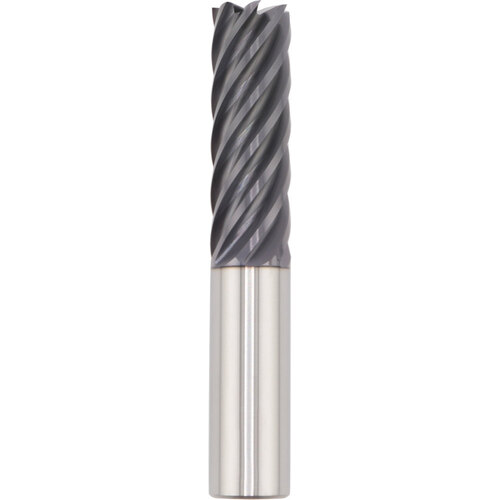

SGS 12.00mm Dia, 48.00mm LOC, 12.00mm Shank Dia, 7 Flute, Coolant-Through, 37 Degree Helix, Ti-NAMITE-A (AlTiN) Coated, Series 77M, H-Carb, Square End End Mill - 74712
SQ End Mill; 12 mm Dia. × 48 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 7 FL ; Carbide ; AlTiN ; Series 77M
| Cutting Diameter (DC) | 12 mm | Length Group | Extra Long |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Flute Type | Spiral |
| Depth of Cut Maximum (APMX) | 48 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 100 mm | Decimal Equivalent | 0.4724″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN | Series/List # | 77M |
| Flute Count (NOF) | 7 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 37 Degrees | Center Cutting | No |
| Shank Type | Round | Trade Name | H-Carb |
| End Shape | Square | Cutting Diameter Tolerance | +0.000/-0.050 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | High Performance End Mill |
Product Features
| Remarks | • Specializes in deep axial trochoidal and high-speed milling applications • Optimized core improves rigidity, chip flow and reduces deflection | Country of Origin | USA |
Shipping Info
Package Weight
0.303
