3/8X3/8X1/2X4X2 1/8X3 RH_

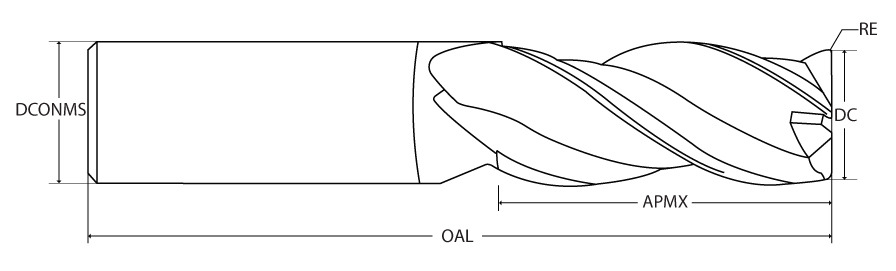

SQ End Mill; 3/8″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 4″ OAL ; 3 FL ; 2-1/8″ LBS ; Carbide ; Ta-C ; Series H337
| Cutting Diameter (DC) | 3/8″ | Neck Diameter (DN) | 0.36 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | Ta-C | Length Group | Standard - Necked |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Square | Style | Necked |
| Usable Length (LU) | 2-1/8″ | Decimal Equivalent | 0.375″ |
| Applicable Material | | Aluminum | Non Ferrous Metals | | Measurement Type | Inch |
| Application | Finishing | HEM | HPM | Roughing | Semi Finishing | Shouldering | Slotting | Series/List # | H337 |
| Grade | A5005 Exxtral Carbon (DLC) | Shank Size (SS) | 3/8″ |
Product Features
| Family Description | 3 Flute End Mill for Finishing, HPM+, Reduced Neck Center cutting, 37° helix angle, High Performance For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
0.272
