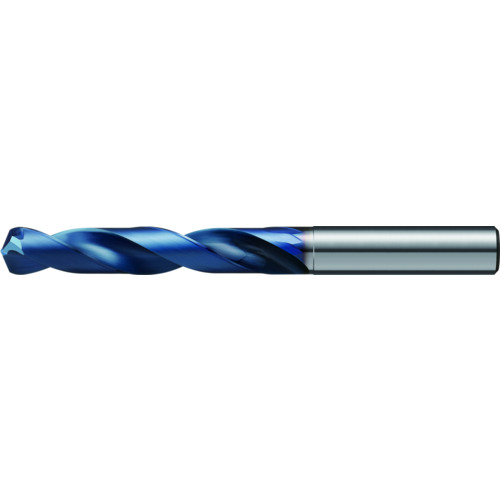

2MMX12MMX49MM REVO CARB
SC Drill; 2.0 mm Dia. × 3 Shank Dia. × 49 mm OAL × 15 LCF ; 135 Degrees ; Jobber ; Normal Flute ; REVO-D ; Series L9896

| Drill Bit Size / Cutting Diameter (DC) | 2.0 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0787″ | Tool Type | Solid Carbide Drills |
| Length Group | Jobber | Flute Type | Normal |
| Coating | REVO-D | Point Shape | Burrless |
| Applicable Material | Mild Steels | Hardened Steel / 40 HRC | Cast Iron | 400 Series Stainless Steel | PH Stainless | Series/List # | L9896 |
| Connection Diameter Machine Side (DCONMS) | 3 | Usable Length (LU) | 11.99 mm |
| Coolant Supply Property (CSP) | Flood | Length Chip Flute (LCF) | 15 |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 49 mm |
| Point Length (PL) | 0.8999 mm | Flute Count (NOF) | 2 |
| Functional Length (LF) | 4xD | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Number of Teeth | 2 | Single / Double End | Single |
| Shank Type | Precision Ground | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.55
